Channel | 432 | TTFF | <40s (cold start) |
Signal Type | BDS B1/B2 GPS L1/L2 GLONASS L1/L2 Galileo E1 /E5b* QZSS L1/L5SBAS L1 | Time | 20ns |
Accuracy (RMS) |
| ||
Autonomous (RMS) | Horizontal:1.5m | ||
Vertical:3.0m | |||
RTK(RMS) | Horizontal:1cm+1ppm | ||
Vertical:1.5cm+1ppm | |||
Heading Accuracy (RMS) | 1.0m baseline 0.2° | ||
Initialisation Reliability | >99.9% | Velocity (RMS) | 0.03m |
Update Rate | 20Hz | INS Specification | distance*5%(<30s) |
Reference Inputs | RTCM2.X/3.X CMR | Navigation outputs | NMEA-0183/Unicore |
Serial Ports | 3 x TTL level ports (RS-232 optional) |
PPS | 3.3V LVTLL level (optional) |
External Event Input | 3.3V LVTLL level (optional) |
Voltage Input | DC10-32V (current>3A) |
Current (Typical) | 350mA@12V (Single Antenna) / 500mA@12V (Dual Antenna) |
Size | 92x84x25mm | Weight | 180g (receiver only) |
Working | -30~+70℃ | Storage | -40~+85℃ |

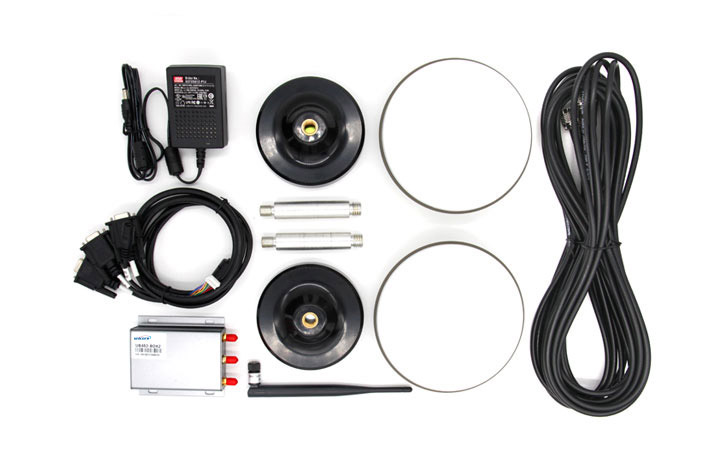

Receiver | Single or dual antenna type available | Power Cable | PHD2.0, 30cm length |
GNSS Antenna | SMA female type with one or two cables | 4G Antenna | SMA female type |
